Privacy Link 5' Ultimate Vinyl Privacy Slat for 2 1/4" Chain Link Mesh Fence | 90% Privacy 10' Lineal Coverage | Dark Brown
Details
Privacy Link 5' Ultimate Vinyl Privacy Slat for 2 1/4" Chain Link Mesh Fence | 90% Privacy 10' Lineal Coverage | Dark Brown
The Ultimate Slat 5' High fence insertfeatures a top-locking mechanism that ensures a clean, straight edge and a design that reduces visibility by up to 98 %. Ultimate Slat 5' High Privacy Slats have a unique four-wing design that provides added screening and security. Comprised of HDPE, high-density polyethylene, these Ultimate Slat High Privacy Slats are resistant to severe weather conditions, saltwater, sand, road dirt, most acids, alcohol, alkaline, ammonia, petroleum distillates and common environmental pollutants. The Ultimate Slat High Privacy Slat is extruded from color pigments and ultraviolet (UV) inhibitors specifically designed to retard the harmful effects of the sun and lengthen the life of the product.
Features:
- Easy To Install, Top-Locking Design
- UV Inhibitors Promotes Long-Lasting Color
- Deters Vandalism And Adds Security To Chain Link Fence
- High-Quality Material Resists Damage From The Elements
- Low-Maintenance Privacy Fence Is Easy To Clean With Water
- Unique Four-Wing Design Provides Added Screening And Security
- Includes A 25-year, Pro-Rated Warranty Against Breakage Under Normal Conditions
Specifications:
- Height: 5'
- Mesh Size: 2" or 2 1/4"
- Material: High Density Polyethylene (HDPE)
- Slat Length: 2" Shorter Than Overall Height Of Fence
- Visibility Blockage: 98% (For 2") and 90% (For 2 1/4")
- Wind Load Privacy Factor: 98% (For 2") and 90% (For 2 1/4")
This product contains 82 slats per box.

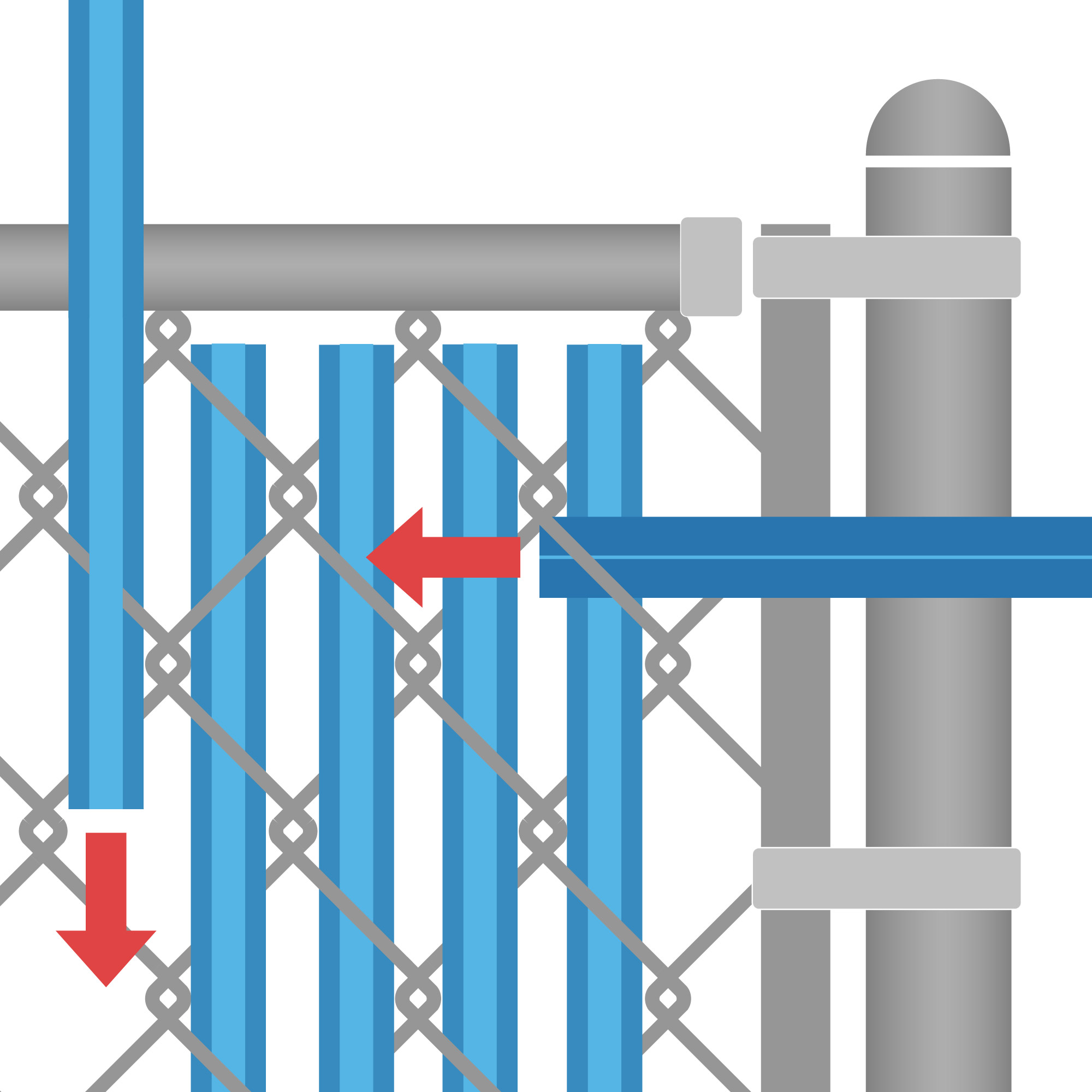

Installation Example Image:
Installation Example Videos:
Types of Privacy Slat Inserts for Chain Link Fencing
| Slat Type | Manufacturer / Warranty | Material | Visibility | Color Options |
|---|---|---|---|---|
| Aluminum Slats | Richard's Fence, 15 yr | Aluminum | 95% | Light Green, Yellow, Green, Blue, Beige, White, Aqua, Black, Brown, Redwood |
| Reflective Fence Slats | Pexco, 5 yr | PVC | 75% | Gold, Silver, Red |
| Bottom Lock Privacy Slats | Pexco, 25 yr | Vinyl | 75% | Beige, Black, Brown, Gray, Green, Light Blue, Redwood, Royal Blue, White |
| Feather Lock Privacy Slats | Pexco, 25 yr | Vinyl | 75% | Beige, Black, Brown, Gray, Green, Light Blue, Redwood, Royal Blue, White |
| FinLink Privacy Slats | Pexco, 25 yr | Vinyl | 90% | Beige, Black, Brown, Gray, Green, Light Blue, Redwood, Royal Blue, White |
| Industrial Privacy Slats | Pexco, 25 yr | Vinyl | 75% | Beige, Black, Brown, Gray, Green, Light Blue, Redwood, Royal Blue, White |
| LiteLink Privacy Slats | Pexco, 7 yr | Vinyl | 75% | Beige, Black, Brown, Gray, Green, Light Blue, Redwood, Royal Blue, White |
| Top Lock Privacy Slats | Pexco, 25 yr | Vinyl | 75% | Beige, Black, Brown, Gray, Green, Light Blue, Redwood, Royal Blue, White |
| Ultimate Privacy Slats | Privacy Link, 25 yr | Vinyl | 98% (2"), 90% (2 1/4") | Sky Blue, Black, White, Dark Brown, Forest Green, Gray, Royal Blue, Beige, Redwood |
| Winged Privacy Slats | Pexco, 25 yr | Vinyl | 90% | Beige, Black, Brown, Gray, Green, Light Blue, Redwood, Royal Blue, White |
Privacy Slat Insert Specifications
| Slat Type | Height Options | Slat Width | Compatible Mesh Size | Compatible Mesh Gauge | Slats per Box* | Approximate Coverage |
|---|---|---|---|---|---|---|
| Aluminum Slats | 3, 3.5, 4, 5, 6, 7, 8, 10 | 1 7/8" | 2" | 9 or 11 | 100 (3'-6'), 50 (7'-10') | 20 Linear Ft. |
| Reflective Fence Slats | Sold per foot | 1 1/4" | 2" and 2 1/4" | 9 or 11 | 40 | 2 Linear Ft. |
| Bottom Lock Privacy Slats | 3, 3.5, 4, 5, 6, 7, 8, 10, 12 | 7/8", 1 3/32", 1 1/4" | 1 3/4", 2", 2 1/4" |
1 3/4": 8, 9, 11 2": 8, 9, 11 2 1/4": 11 1/2 or 12 1/2 |
100 (1 3/4") 82 (2") 78 (2 1/4") |
10 Linear Ft. |
| Feather Lock Privacy Slats | 3, 3.5, 4, 5, 6, 7, 8, 10, 12 | 1 1/4" | 2" | 9 or 11 | 82 | 10 Linear Ft. |
| FinLink Privacy Slats | 3, 3.5, 4, 5, 6, 7, 8, 10, 12 | 1 3/8" | 2" | 11, 11 1/2 or 12 | 82 | 10 Linear Ft. |
| Industrial Privacy Slats | 3, 3.5, 4, 5, 6, 7, 8, 10, 12 | 2 3/8" | 3 1/2" - 5" | 9 or 10 | 106 | 25 Linear Ft. |
| LiteLink Privacy Slats | 3, 3.5, 4, 5, 6, 7, 8, 10, 12 | 1 1/4" | 2" and 2 1/4" | 9 or 11 | 82 | 10 Linear Ft. |
| Top Lock Privacy Slats | 3, 3.5, 4, 5, 6, 7, 8, 10, 12 | 1 3/32" | 2" | 8, 9, 11 | 82 | 10 Linear Ft. |
| Ultimate Privacy Slats | 3, 4, 5, 6, 7, 8, 10, 12 | 1 7/16" | 2", 2 1/4" |
2": 9 2 1/4": 11 |
82 | 10 Linear Ft. |
| Winged Privacy Slats | 3, 3.5, 4, 5, 6, 7, 8 | 1 1/4" | 2" | 9 | 82 | 10 Linear Ft. |
*Slats per box may vary depending on fence height and mesh size.
Prefer to Call? (888) 378-1089
Questions about part number ULTIMATE5-DARKBROWN-214-INCH?
Required Fields *
| SKU | ULTIMATE5-DARKBROWN-214-INCH |
|---|---|
| Color | Dark Brown |
| Coverage | 10 Lineal Feet |
| Fence Height | 5' High |
| Fits Mesh Size | 2 1/4" |
| Locking Channel | Top Locking Strip |
| Visibility Blockade | 90% |
| Wire Gauge | 11 Gauge |
| Warranty | 25 Year Warranty |
| Quantity In Pack | 82 |
| Specification Sheet | Download PDF file |
| Installation Guide | Download PDF file |
| Country of Manufacture | United States |
